#include <MotionWithIntervalStep.hpp>

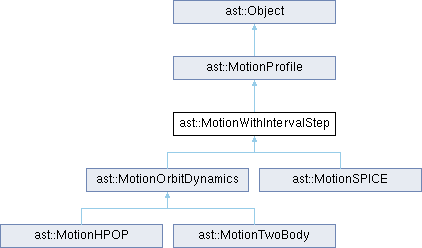

类 ast::MotionWithIntervalStep 继承关系图:

Public 成员函数
errc_t	getInterval (TimeInterval &interval) const

SharedPtr< EventInterval > &	getIntervalHandle ()

void	setInterval (EventInterval *interval)

void	setInterval (const TimeInterval &interval)

double	getStepSize () const

void	setStepSize (double stepSize)

	MotionProfile ()=default

Public 成员函数继承自 ast::MotionProfile
MotionHPOP *	toHPOP () const

MotionTwoBody *	toTwoBody () const

MotionSPICE *	toSPICE () const

MotionBallistic *	toBallistic () const

MotionSimpleAscent *	toSimpleAscent () const

virtual errc_t	makeEphemerisSpec (ScopedPtr< Ephemeris > &eph) const =0

virtual errc_t	makeEphemerisSimple (ScopedPtr< Ephemeris > &eph) const =0

virtual void	accept (MotionProfileVisitor &visitor)=0

Public 成员函数继承自 ast::ObjectNamed
	ObjectNamed ()=default

	ObjectNamed (StringView name)

const std::string &	getName () const override

void	setName (StringView name) override

Public 成员函数继承自 ast::Object
	Object (Object *parentScope)

	Object (std::nullptr_t)

	Object (initial_strong_ref_t)

virtual Class *	getType () const

virtual std::string	getRepresentation () const

const std::string &	name () const

errc_t	showEditDialog ()

Attribute	attr (StringView path)

errc_t	getAttrBool (StringView path, bool &value) const

errc_t	getAttrInt (StringView path, int &value) const

errc_t	getAttrDouble (StringView path, double &value) const

errc_t	getAttrString (StringView path, std::string &value) const

errc_t	getAttrObject (StringView path, Object *&value) const

double	getAttrDouble (StringView path) const

int	getAttrInt (StringView path) const

bool	getAttrBool (StringView path) const

std::string	getAttrString (StringView path) const

Object *	getAttrObject (StringView path) const

errc_t	setAttrBool (StringView path, bool value)

errc_t	setAttrInt (StringView path, int value)

errc_t	setAttrDouble (StringView path, double value)

errc_t	setAttrString (StringView path, StringView value)

errc_t	setAttrObject (StringView path, Object *value)

Class *	type () const

const std::string &	typeName () const

Property *	getProperty (StringView fieldName) const

ObjectId	getID () const

errc_t	setParentScope (Object *parentScope)

Object *	getParentScope () const

bool	isOfType (const Class *type) const

bool	isOfType (StringView typeName) const

template<typename T >
bool	isOfType () const

uint32_t	refCount () const

uint32_t	weakRefCount () const

bool	isDestructed () const

void	destruct ()

uint32_t	incWeakRef ()

uint32_t	decWeakRef ()

uint32_t	incRef ()

uint32_t	decRef ()

uint32_t	decRefNoDelete ()

template<typename Func >
void	addDelayedLink (Func &&link)

template<typename Func >
void	addDelayedLinkIfFailed (Func &&link)

void	resolveLinks ()

Protected 属性
SharedPtr< EventInterval >	interval_

double	stepSize_ {60.0}

额外继承的成员函数
静态 Public 成员函数继承自 ast::Object
static Object *	Resolve (StringView value)

static void	ClassInit (Class *cls)

static Class *	StaticType ()

静态 Public 属性继承自 ast::Object
static Class	staticType

Protected 成员函数继承自 ast::Object
	Object (const Object &obj)

Object &	operator= (const Object &)

详细描述

具有时间段和步长的运动模型

成员函数说明

◆ getInterval()

errc_t ast::MotionWithIntervalStep::getInterval ( TimeInterval & interval ) const

获取运动时间间隔

参数

interval 时间间隔引用

返回: 错误码

◆ getStepSize()

double ast::MotionWithIntervalStep::getStepSize ( ) const

inline

获取预报步长

返回: 预报步长

◆ setStepSize()

void ast::MotionWithIntervalStep::setStepSize ( double stepSize )

inline

设置预报步长

参数

stepSize 预报步长

该类的文档由以下文件生成:

src/AstSim/Motion/Abstract/MotionWithIntervalStep.hpp
src/AstSim/Motion/Abstract/MotionWithIntervalStep.cpp
