#include <Ephemeris.hpp>

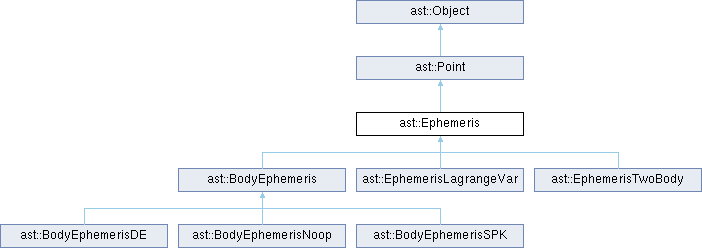

类 ast::Ephemeris 继承关系图:

Public 成员函数
virtual Frame *	getFrame () const override=0

virtual errc_t	getPos (const TimePoint &tp, Vector3d &pos) const override=0

virtual errc_t	getPosVel (const TimePoint &tp, Vector3d &pos, Vector3d &vel) const override=0

virtual errc_t	getInterval (TimeInterval &interval) const =0

Public 成员函数继承自 ast::Point
CelestialBody *	toBody () const

errc_t	getPosIn (Frame *frame, const TimePoint &tp, Vector3d &pos) const

errc_t	getPosVelIn (Frame *frame, const TimePoint &tp, Vector3d &pos, Vector3d &vel) const

Public 成员函数继承自 ast::ObjectNamed
	ObjectNamed ()=default

	ObjectNamed (StringView name)

const std::string &	getName () const override

void	setName (StringView name) override

Public 成员函数继承自 ast::Object
	Object (Object *parentScope)

	Object (std::nullptr_t)

	Object (initial_strong_ref_t)

virtual Class *	getType () const

virtual std::string	getRepresentation () const

const std::string &	name () const

errc_t	showEditDialog ()

Attribute	attr (StringView path)

errc_t	getAttrBool (StringView path, bool &value) const

errc_t	getAttrInt (StringView path, int &value) const

errc_t	getAttrDouble (StringView path, double &value) const

errc_t	getAttrString (StringView path, std::string &value) const

errc_t	getAttrObject (StringView path, Object *&value) const

double	getAttrDouble (StringView path) const

int	getAttrInt (StringView path) const

bool	getAttrBool (StringView path) const

std::string	getAttrString (StringView path) const

Object *	getAttrObject (StringView path) const

errc_t	setAttrBool (StringView path, bool value)

errc_t	setAttrInt (StringView path, int value)

errc_t	setAttrDouble (StringView path, double value)

errc_t	setAttrString (StringView path, StringView value)

errc_t	setAttrObject (StringView path, Object *value)

Class *	type () const

const std::string &	typeName () const

Property *	getProperty (StringView fieldName) const

ObjectId	getID () const

errc_t	setParentScope (Object *parentScope)

Object *	getParentScope () const

bool	isOfType (const Class *type) const

bool	isOfType (StringView typeName) const

template<typename T >
bool	isOfType () const

uint32_t	refCount () const

uint32_t	weakRefCount () const

bool	isDestructed () const

void	destruct ()

uint32_t	incWeakRef ()

uint32_t	decWeakRef ()

uint32_t	incRef ()

uint32_t	decRef ()

uint32_t	decRefNoDelete ()

template<typename Func >
void	addDelayedLink (Func &&link)

template<typename Func >
void	addDelayedLinkIfFailed (Func &&link)

void	resolveLinks ()

额外继承的成员函数
静态 Public 成员函数继承自 ast::Object
static Object *	Resolve (StringView value)

static void	ClassInit (Class *cls)

static Class *	StaticType ()

静态 Public 属性继承自 ast::Object
static Class	staticType

Protected 成员函数继承自 ast::Object
	Object (const Object &obj)

Object &	operator= (const Object &)

详细描述

星历接口

在点接口的基础上增加了对可用时间间隔的获取方法

成员函数说明

◆ getFrame()

virtual Frame * ast::Ephemeris::getFrame ( ) const

overridepure virtual

获取点所在的参考坐标系

返回: 点所在的参考坐标系指针

实现了 ast::Point.

在 ast::BodyEphemeris, ast::EphemerisLagrangeVar, ast::EphemerisMultiSegment , 以及 ast::EphemerisTwoBody 内被实现.

◆ getPos()

virtual errc_t ast::Ephemeris::getPos	(	const TimePoint &	tp,
		Vector3d &	pos ) const

overridepure virtual

获取点在指定时间点的位置，相对于点的参考坐标系

参数

tp	时间点
pos	输出参数，点的位置向量

返回: 错误码

实现了 ast::Point.

在 ast::BodyEphemeris, ast::EphemerisLagrangeVar, ast::EphemerisMultiSegment , 以及 ast::EphemerisTwoBody 内被实现.

◆ getPosVel()

virtual errc_t ast::Ephemeris::getPosVel	(	const TimePoint &	tp,
		Vector3d &	pos,
		Vector3d &	vel ) const

overridepure virtual

获取点在指定时间点的位置和速度，相对于点的参考坐标系

参数

tp	时间点
pos	输出参数，点的位置向量
vel	输出参数，点的速度向量

返回: 错误码

实现了 ast::Point.

在 ast::BodyEphemeris, ast::EphemerisLagrangeVar, ast::EphemerisMultiSegment , 以及 ast::EphemerisTwoBody 内被实现.

该类的文档由以下文件生成:

src/AstCore/Orbit/Ephemeris/Ephemeris.hpp
